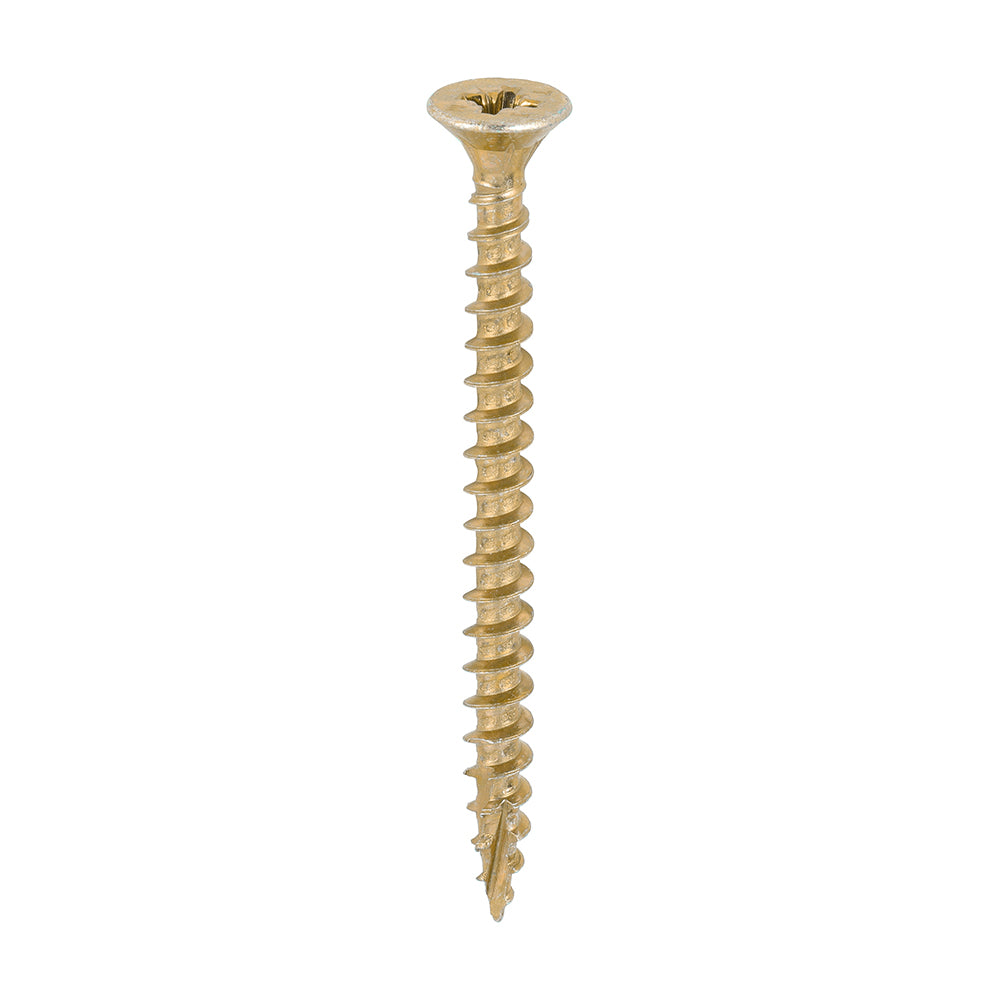

A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle full thread design ensures maximum pull-out strength on every fixing. Ideal for applications when optimum holding force is required such as hinges, brackets and high load environments.
• Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid "pick-up" and reduces timber splitting
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Lubrication | Gleitmo |
Driver Bit Size | PZ2 |
Size (mm) | 5.0 x 60 |
Corrosion Rating (1-5) | 2 - Occasionally damp/wet, rural and sheltered areas |
Material | Carbon Steel |
Point Type | Twin-Cut |
Head Ø (mm) | 9.7 |
MOQ | 1 |
Pack Qty | 200 |
Thread Ø (mm) | 5 |
Gauge | 10 |
Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Pack Quantity Unit | Pieces |
Thread Type | 40° Single |
Head Type | Double Countersunk |
Pack Type | Box |
Thread L (mm) | 55 |
Finish | Zinc & Yellow |
Recess Type | Pozi |
MOQ Increment | 1 |
L (inch) | 2 1⁄2 |
L (mm) | 60 |
Size (imp.) | 10 x 2 1⁄2 |
Packs per Carton | 16 |
Pack Dimensions L x W x H (mm) | 138 x 94 x 92 |
Pack Weight (kg) | 1.06 |
