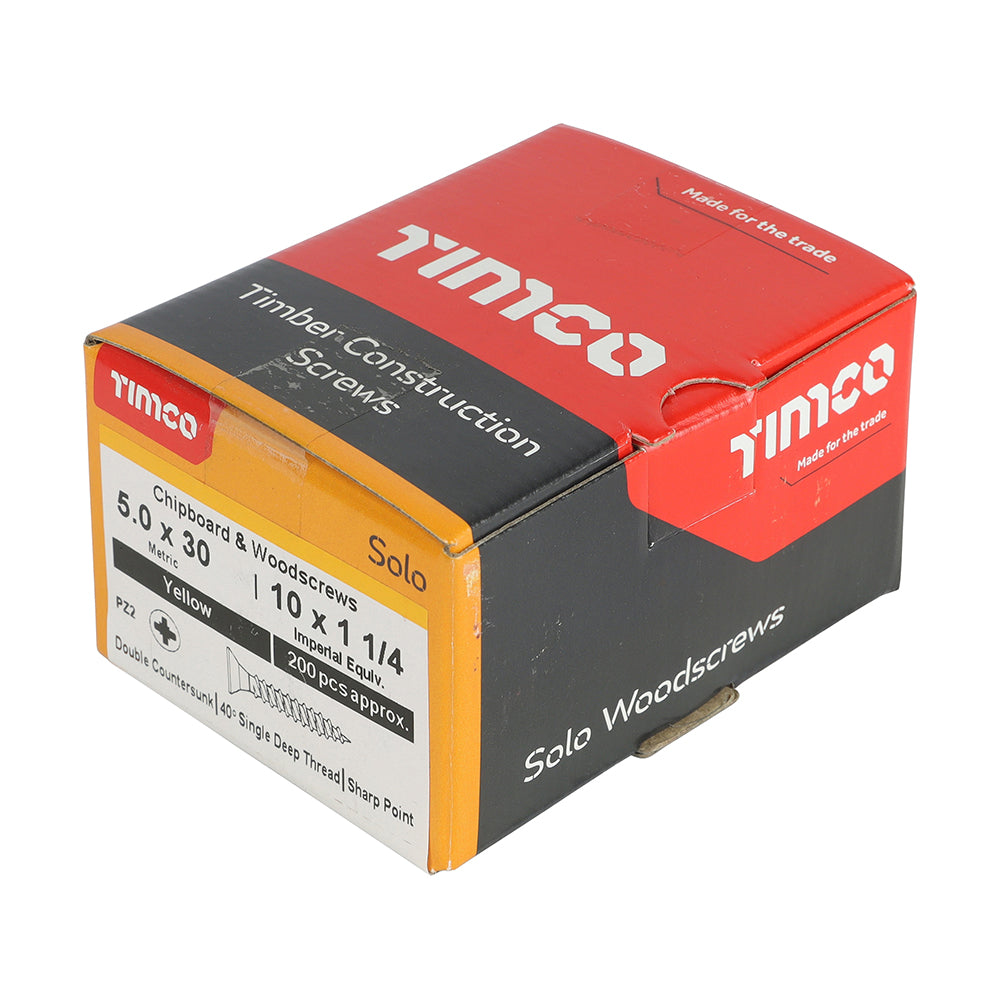

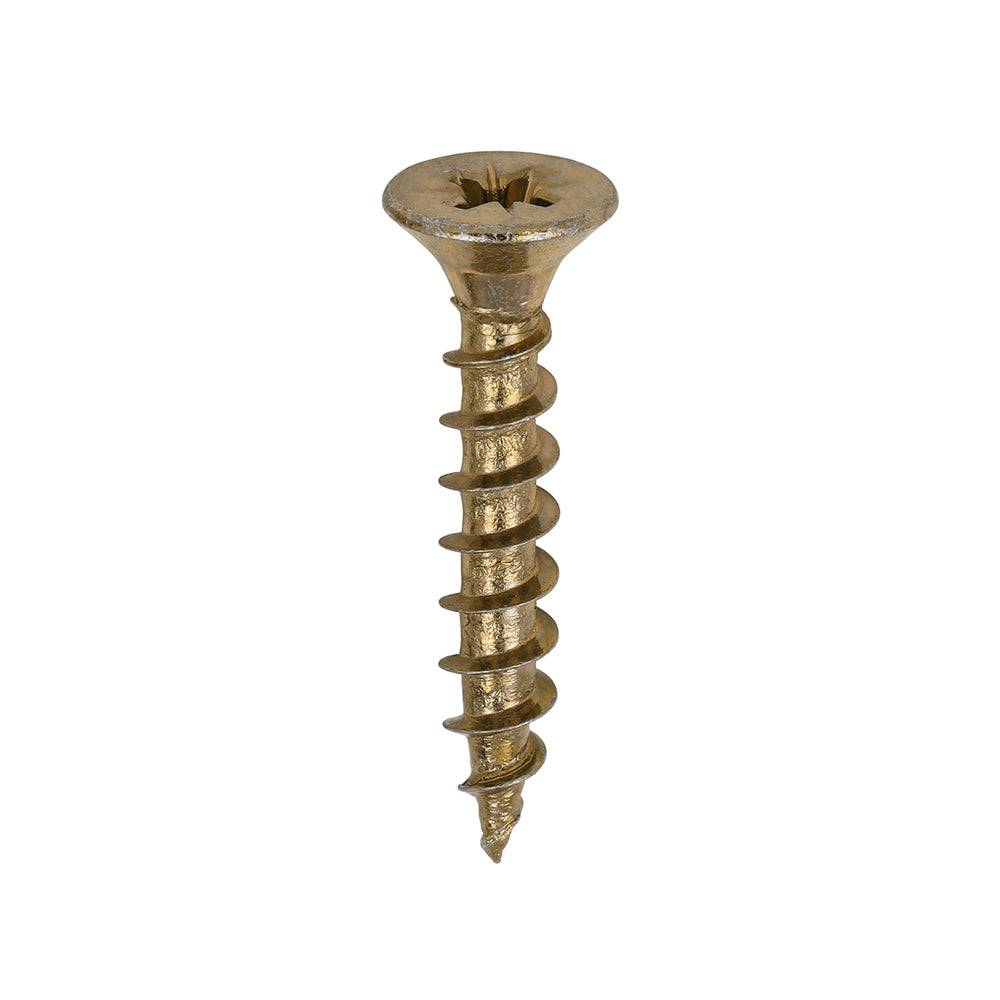

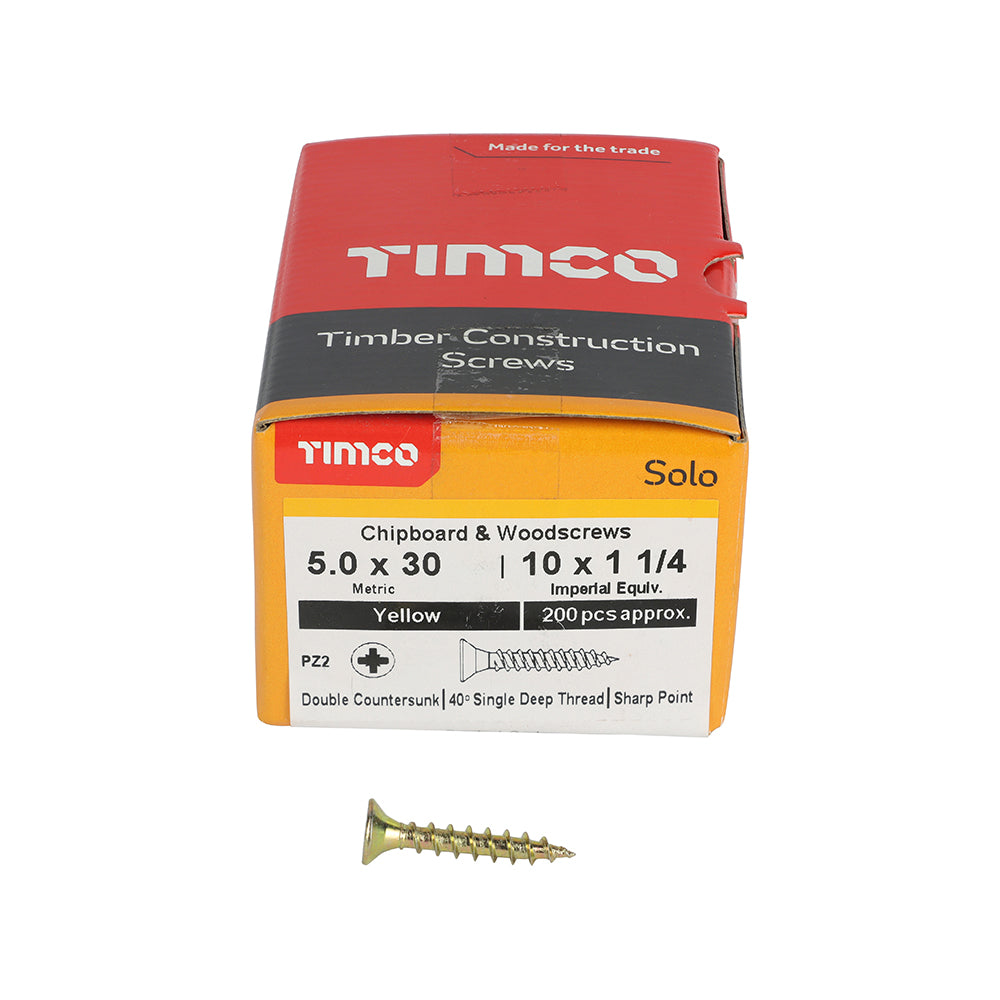

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 30mm (200 QTY)
A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
| Size (mm) | 5.0 x 30 |
| Corrosion Rating (1-5) | 1 - Clean, dry & low humidity environments |
| MOQ | 1 |
| MOQ Increment | 1 |
| Packs per Pallet | 1200 |
| Thread L (mm) | 25 |
| Driver Bit Size | PZ2 |
| Finish | Zinc & Yellow |
| Inner Thread Ø d1 (mm) | 3.1 |
| L (inch) | 1 1⁄4 |
| Pack Qty | 200 |
| Pack Quantity Unit | Pieces |
| Recess Type | Pozi |
| Pallet Qty (pcs) | 240000 |
| Head Type | Double Countersunk |
| Head Ø (mm) | 9.74 |
| Substrates | Softwood, Chipboard, MDF, Masonry (with plug) |
| Thread Type | 40° Single Deep |
| Material | Carbon Steel |
| Lubrication | Wax |
| Packs per Carton | 50 |
| Gauge | 10 |
| Point Type | 25° Sharp |
| Pack Type | Box |
| Size (imp.) | 10 x 1 1⁄4 |
| L (mm) | 30 |
| Thread Ø (mm) | 5 |
| Feature 5 | All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length |
| Feature 4 | 25° sharp point and single lead for a fast start and improved thread acceptance |
| Feature 3 | 40° deep single thread to provide a secure fixing with high pull-out resistance |
| Feature 2 | Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion |
| Feature 1 | Double countersunk reduces the likelihood of head shear and assists completion of countersinking |
| Brand | TIMCO |
| Thread Coverage | Fully Threaded |
| Pack Weight (kg) | 0.52 |
| Pack Dimensions L x W x H (mm) | 92 x 74 x 54 |
